BGP – Do not advertise a network

Remove routes from Advertisement on a Forigate firewall

Not to myself: 10.255.32.0/20 was wired on C1, local pref was missing. so it might make sens to add this to all incoming routes 'set local-preference 100', incoming there is no issue.

show router route-map

show router route-map
config router route-map
    edit "EBGP-OUT-R2"
        config rule
            edit 1
                set action deny
                set match-ip-address "EBGP-OUT-R2-DENY"
                set set-community "65001:65003"
                set set-community-additive enable
            next
            edit 2
            next
        end
    next
end
show router prefix-list
config router prefix-list
    edit "EBGP-OUT-R2-DENY"
        config rule
            edit 1
                set prefix 10.255.32.0 255.255.240.0
                unset ge
                unset le
            next
            edit 2
                set prefix 10.0.8.0 255.255.248.0
                unset ge
                unset le
            next
        end
    next
end

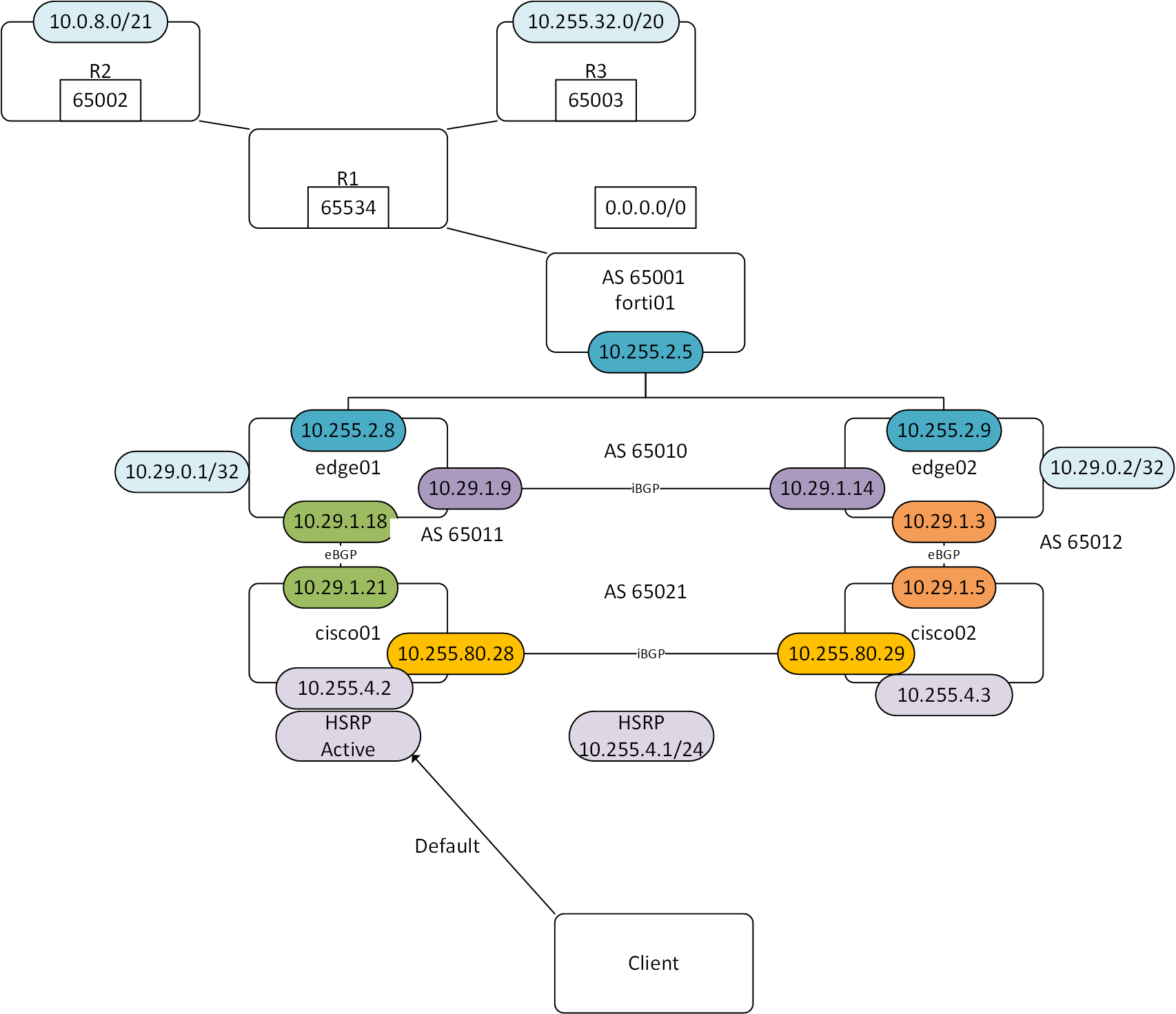

Adding more Path AS on the Edge Router 01

Change the AS Path Advertised on the EdgeRouter to the Primary Cisco Router so path on the cisco is still multi path.

set policy prefix-list EBGP-OUT-C1-P1 rule 1 action permit
set policy prefix-list EBGP-OUT-C1-P1 rule 1 prefix 10.255.32.0/20
set policy route-map EBGP-OUT-C1 rule 1 action permit
set policy route-map EBGP-OUT-C1 rule 1 match ip address prefix-list EBGP-OUT-C1-P1
set policy route-map EBGP-OUT-C1 rule 1 set as-path-prepend ‘65011’
set policy route-map EBGP-OUT-C1 rule 2 action permit
set protocols bgp 65011 neighbor 10.29.1.21 route-map export EBGP-OUT-C1

show ip bgp neighbors 10.29.1.21 advertised-routes
BGP table version is 20, local router ID is 10.29.0.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete

    Network          Next Hop            Metric    LocPrf       Weight Path
*>  0.0.0.0/0        10.29.1.18                                 0       65001 i
*>  10.0.8.0/21      10.29.1.18                                 0       65001 65534 65002 i
*>  10.29.0.1/32     10.29.1.18                    100          32768    i
*>  10.29.0.2/32     10.29.1.18                                 0       65012 i
*>  10.255.32.0/20   10.29.1.18                                 0       65011 65001 65534 65003 i

Total number of prefixes 5

Add more AS to the path incoming on Cisco01

ip prefix-list EBGP-IN-E1-P1 permit 10.0.8.0/21
!
ip prefix-list EBGP-IN-E1-P2 permit 10.255.32.0/20
!
route-map EBGP-IN-E1 permit 10
 match ip address prefix-list EBGP-IN-E1-P1
 set as-path prepend last-as 1
 set local-preference 100
!
route-map EBGP-IN-E1 permit 20
 match ip address prefix-list EBGP-IN-E1-P2
 set local-preference 100
!
router bgp 65021
 neighbor 10.29.1.18 route-map EBGP-IN-E1 in

Verify on the Cisco

show ip route

show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2, m - OMP
       n - NAT, Ni - NAT inside, No - NAT outside, Nd - NAT DIA
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       H - NHRP, G - NHRP registered, g - NHRP registration summary
       o - ODR, P - periodic downloaded static route, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR
       & - replicated local route overrides by connected

Gateway of last resort is 10.255.80.29 to network 0.0.0.0

B*    0.0.0.0/0 [20/0] via 10.255.80.29, 00:33:41
                [20/0] via 10.29.1.18, 00:33:41
      10.0.0.0/8 is variably subnetted, 34 subnets, 6 masks
B        10.255.32.0/20 [20/0] via 10.255.80.29, 00:33:41
                        [20/0] via 10.29.1.18, 00:33:41

show ip bgp neighbors 10.29.1.18 received-routes
BGP table version is 104, local router ID is 10.255.0.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path, L long-lived-stale,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *    0.0.0.0          10.29.1.18                             0 65011 65001 i
 *    10.0.8.0/21      10.29.1.18                             0 65011 65001 65534 65002 i
 *    10.29.0.1/32     10.29.1.18                             0 65011 i
 *    10.29.0.2/32     10.29.1.18                             0 65011 65012 i
 *    10.255.32.0/20   10.29.1.18                             0 65011 65011 65001 65534 65003 i

Total number of prefixes 5

show ip bgp

show ip bgp
BGP table version is 51, local router ID is 10.255.0.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path, L long-lived-stale,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>   0.0.0.0          10.29.1.18                             0 65011 65001 i
 *mi                   10.255.80.29             0    100      0 65012 65001 i

 *mi  10.0.8.0/21      10.255.80.29             0    100      0 65012 65011 65001 65534 65002 i
 *>                    10.29.1.18                             0 65011 65011 65001 65534 65002 i

 *>   10.255.32.0/20   10.29.1.18                             0 65011 65011 65001 65534 65003 i
 *mi                   10.255.80.29             0    100      0 65012 65011 65001 65534 65003 i

show ip bgp 10.255.32.0/20
BGP routing table entry for 10.255.32.0/20, version 9
Paths: (2 available, best #1, table default)
Multipath: eiBGP
  Not advertised to any peer
  Refresh Epoch 1
  65012 65011 65001 65534 65003, (received & used)
    10.255.80.29 from 10.255.80.29 (10.255.0.2)
      Origin IGP, metric 0, localpref 100, valid, internal, best
      rx pathid: 0, tx pathid: 0x0
      Updated on Jun 27 2024 05:42:42 UTC
  Refresh Epoch 1
  65011 65011 65001 65534 65003, (received-only)
    10.29.1.18 from 10.29.1.18 (10.29.0.1)
      Origin IGP, localpref 100, valid, external
      rx pathid: 0, tx pathid: 0
      Updated on Jun 27 2024 05:42:40 UTC

#show ip bgp 10.255.32.0/20
BGP routing table entry for 10.255.32.0/20, version 16
Paths: (2 available, best #2, table default)
Multipath: eiBGP
  Not advertised to any peer
  Refresh Epoch 1
  65012 65011 65001 65534 65003, (received & used)
    10.255.80.29 from 10.255.80.29 (10.255.0.2)
      Origin IGP, metric 0, localpref 100, valid, internal, multipath(oldest)
      rx pathid: 0, tx pathid: 0
      Updated on Jun 27 2024 05:42:42 UTC
  Refresh Epoch 1
  65011 65011 65001 65534 65003, (received & used)
    10.29.1.18 from 10.29.1.18 (10.29.0.1)
      Origin IGP, localpref 100, valid, external, multipath, best
      rx pathid: 0, tx pathid: 0x0
      Updated on Jun 27 2024 05:42:40 UTC

show ip bgp 10.0.8.0/21
BGP routing table entry for 10.0.8.0/21, version 14
Paths: (3 available, best #2, table default)
Multipath: eiBGP
  Not advertised to any peer
  Refresh Epoch 1
  65012 65011 65001 65534 65002, (received & used)
    10.255.80.29 from 10.255.80.29 (10.255.0.2)
      Origin IGP, metric 0, localpref 100, valid, internal, multipath(oldest)
      rx pathid: 0, tx pathid: 0
      Updated on Jun 27 2024 05:42:42 UTC
  Refresh Epoch 1
  65011 65011 65001 65534 65002
    10.29.1.18 from 10.29.1.18 (10.29.0.1)
      Origin IGP, metric 0, localpref 100, valid, external, multipath, best
      rx pathid: 0, tx pathid: 0x0
      Updated on Jun 27 2024 05:45:59 UTC
  Refresh Epoch 1
  65011 65001 65534 65002, (received-only)
    10.29.1.18 from 10.29.1.18 (10.29.0.1)
      Origin IGP, localpref 100, valid, external
      rx pathid: 0, tx pathid: 0
      Updated on Jun 27 2024 05:42:40 UTC
